Corten B steel
Corten B, as the symbol of weathering steel material, weathering resistant steel or atmospheric corrosion resisting steel. Even, some people called all the weathering steel as Corten Steel. Corten B steel started from North America.Corten steel widely used in air preheater,economizer,railway carriage,containers production,bridge building,construction and so on
Product introduction
Corten B steel
ASTM Corten B steel grade is a hot rolled products of structural steels in technical delivery conditions with improved atmospheric corrosion resistance.The steel grade Corten B is according to ASTM standard which with the yield strength of 355MPa and 345MPa which is based on the different thickness.
Corten B – a weather resistant steel which is better suited for heavy and load bearing structures.
The material forms its own protective layer when exposed to atmospheric elements. Essentially, the top layer corrodes which then protects the steel beneath it. The natural finish does not normally require any form of maintenance such as painting, which makes the material a highly cost effective alternative to other structural steels.
Painting and maintenance will be required if the structure is is continually wet as a protective layer will not form. An good example is where the base of the structure meets with the ground or is partially submerged.
Grades & Equivalents
| Corten | EN 10025-5:2004 |
| Corten B | S355J2W |
Technical Data
Chemical Components
| Grade | C | Si | Mn | P | S | Cu | Ni | Cr | V | N |
| Corten-A | 0.12 | 0.25-0.75 | 0.20-0.50 | 0.07-0.15 | 0.03 | 0.25-0.55 | 0.65 | 0.50-1.25 | ||
| Corten-B | 0.16 | 0.30-0.50 | 0.80-1.25 | 0.03 | 0.03 | 0.25-0.40 | 0.4 | 0.40-0.65 | 0.02-0.10 |
ASTM Corten B steel Mechanical properties:
At room temperature for plates ≥3mm in thickness (transverse test specimans, according to EN 10002). Requirements to hot rolled plates ≤3mm in thickness according to EN 10025-5.
| Grade |
Thickness (mm) |
Yield Strength MPa(min) |
Tensile Strength MPa |
Elongation % (min) |
| Corten B | ≤16 | 355 | 470-630 | 20 |
1 Mpa = 1N/mm2
The impact energy is determined on ISO-V longitudinal test specimens at a temperature of - 20°C as an average of three tests. For product thicknesses ≥10mm the average value is at least 27 J. For thicknesses between 10mm and 6mm, the minimum impact value is reduced proportionally to the specimen width (product thickness).
Corten B Steel Delivery state
Hot Rolled, Cold Rolled, Normalized, Quenched, Tempering, Thermal Mechanical Control Process (TMCP), Electroslag Remelting Technical, HIC test.
Packing and delivery
Application field
Why Choose Us
1. Quality
We are professional symbol of Chinese Metal industry; so all the supplied metal products from MAXI are quality researched & guaranteed well ones. Quality is our life. No quality, no biz.
2. Price
Based on mature and rich acknowledge & experience for stainless steel and alloy steel , MAXIMETAL's supplied price could ensure customer has unique competitiveness in the market. As our aim is long-term biz instead of only profit by 1 or 2 order, we understand only customer win, we could win.
3. Delivery
MAXI is one of TOP 10 manufacturer of stainless steel and alloy products in China, Hold 10000tons raw materials in stock,has its own rolling factory,So enjoy high priority for delivery: Usually within 10-15 from deposit date.
4. Payment
MAXI supply 30% TT IN ADVANCE + 70% TT WITHIN 7 DAYS OF BL DATE or IRR L/C AT SIGHT for customers. And with cooperation's growing & mature, better & better payment term will be issued, such as: L/C 30 DAYS, L/C 60 DAYS, L/C 360 DAYS, etc.
5. Service
From MAXI, what customer could get is not only product, but also complete comprehensive marketting concept & service.
FAQ
Q:Will you delivery the goods on time?
A:Yes,we promise to provide best quality products and delivery on time.Honesty is our company's tenet.
Q:Do you provide samples?is it free or extra?
A:The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q:Do you accept the third party inspection?
A:Yes absolutely we accept.
Q:What are your main products?
A:Carbon steel,alloy steel,stainless steel plate/coil,pipe and fittings,sections etc.
Q:Can you accept the order of customzied?
A:Yes,we assure
Customer visit Feedback
Keywords: Corten B steel
Warehouse storage

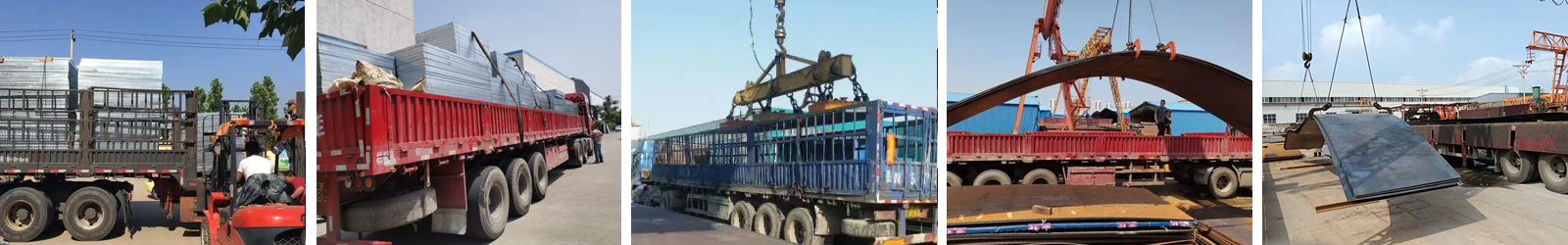

Packing and delivery
